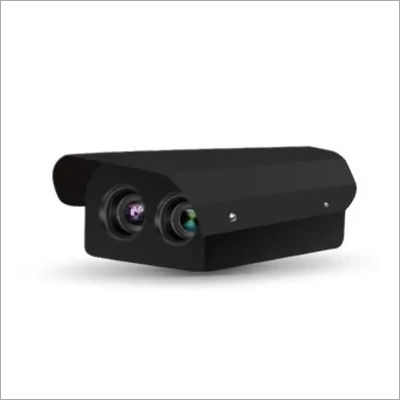

Thermal Body Scanner

Thermal Body Scanner
Thermal Body Scanner
Send Inquiry
Product Code : 15
Brand Name : Advance
Product Description

Automatic body temperature measurement thermal camera with uncooled Infrared detector, high-performance infrared lens and HD visible camera. This system adopts advanced thermal imaging technology and intelligent AI image processing algorithms can is able to quickly capture faces in crowded public places and measure multiple bodytemperatures.

  • Thermal ImagingTechnology
  • Support face recognition, mask recognition
  • Non-contact and automaticmeasurement
  • High temperature accuracy:±0.3℃
  • Automatic temperature exception alarm function
  • Build in AI with human facedetection/record
  • 0.5m~2m detectiondistance
  • Can detect and measure temperature of multiple people at the sametime
  • Software customizations available

Technical Specifications*

Model AR-TC6
Visible Camera Resolution 1080P,640P,320P
Scan Mode Progressive Scan
LUX 0.01Lux
Wired wired 10Mbps/100Mbps RJ45
InfaredCamera Detector type Uncooled focal plane
Wavelength range 8~14μm
Lens 4mm
Viewable 42.0°×32.1°
Fps 25Hz/15Hz
Temperature Range 30℃~45℃
Accuracy ±0.3℃
Atmospheric correction Atmospheric transmittance is calculated according to meteorological parameters and temperature correction automatically
Multi-person Support 4-6 people or more as per model selection
High temperature alarm Automatic alarm of over temperature of 37.3oC
Device parameter Working Temperature 10oC ~50oC
Working Humidity 15~65%,No condensation
Net Weight 2300g (approx.)
Power DC12V 2A
Power consumption 5W
Audio External active speaker

Note: Due to process of continuous improvements, specifications are subject to change without prior notice

Accessories

  • Complete setup includes
  • Camera system
  • Mounting stand / bracket
  • Power adapter
  • Wires and cable
