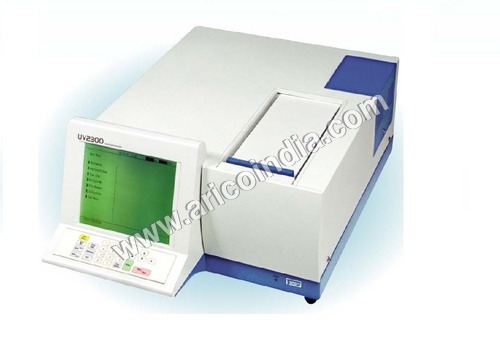

Spectrophotometer UV-VIS

Spectrophotometer UV-VIS
Spectrophotometer UV-VIS
Send Inquiry
Product Code : 13
Brand Name : ADVANCE
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 30000 Onwards INR
Product Specifications
  • Color
  • White
  • Voltage
  • 220 Volt (v)
  • Product Type
  • Spectrophotometer
  • Material
  • Plastic
  • Display Type
  • LED
Product Description

Empowered with a team of industry experts, we are able to bring forth the Spectrophotometer UV-VIS. Manufactured using optimum grade components that are procured from the reliable vendors of the industry in compliance with the set industry standards, our offered Spectrophotometer UV-VIS is immensely appreciated for its robust construction, perfect finish, low maintenance and longer functional life. The offered machine is used in different laboratories and industries depending upon the need of the clients, spanning across the nation.

Main Features:

  • Stable Double Beam Optical System
  • Automatic wavelength calibration function
  • High resolution 1.5 / 1 nm bandwidth
  • USB Storage of method and data file
  • Expandable with abundant choice of accessories


Technical Details

  • The UV 2301offers high performance, ease of use and to various applications. High resolution of 1 nm meets European pharmacopoeia standards.
  • High resolved monohromator The UV 2301 can achieve high resolution by eliminating coma aberration from Seya- Namioka monochromator which is the most popular diffraction grating manufactured by a unique ruling technology available in Japan.
  • Bandwidth of 1 nm meets European Pharmacopoeia Standards. The European pharmacopoeia requires the maximum to minimum Absorbance ratio shall be greater than 1 when measuring 0.02% (v/v) solution of toluene in hexane.
  • Diverse Measurement Modes UV 2301provide wide range of measurement modes including wavelength scan, time scan, multi-wavelength measurement etc.
  • Fast Wavelength Scan over Entire UV/VIS Wavelength Range Wavelength range from 190 nm to 1100 nm, maximum scan speed of 3600 nm/min and direct spectra display on LCD.
  • Validation functionality and GLP/GMP wizard With this function, UV 2301ensures the instrument performance is kept at the optimum level. Parameters such as wavelength accuracy and noise level can be monitor
  • Easy Storage of Analytical Parameter and Measurement Data Analytical parameters and measurement data can be stored in USB flash disk. Data is saved in text-format and can be transferable to PC and opened by MS WORD/EXCEL for further treatment and report customization.


Built-in 260/280 ratio measurement function for RNA and DNA quantitation

  • C control using UV Analyst can be selected.
  • Micro Cell is available for biochemistry applications.


UV-VIS Spectrophotometer Model UV-2300

UV-VIS Spectrophotometer Model UV-2301


Double Beam principle

Double Beam principle

Wavelength range

190 1100 nm

190  1100 nm

Spectral bandwidth

1.5 nm

1 nm

Stray light

0.05 % ( 220nm NaI, 340 nm NaNO2 )

 0.05 % ( 220nm NaI, 340 nm NaNO2 )

Wavelength scan speed

10, 100, 200, 400, 800, 1200, 2400, 3600 nm / min

10, 100, 200, 400, 800, 1200, 2400, 3600 nm / min

Wavelength accuracy

+-0.3 nm

+- 0.3 nm

Baseline accuracy

0.003 Abs / hr ( 500 nm, 2 hours warm up time )

0.003 Abs / hr ( 500 nm, 2 hours later)

Noise level

0.0003 Abs ( 500 nm )

0.0003 Abs ( 500 nm )

Light sources

WI and D2 Lamps

WI and D2 Lamps


LCD with Backlit ( 190mm X 138 mm )

LCD with Backlit ( 190mm X 138 mm )

Trade Information
  • Payment Terms
  • Letter of Credit (L/C), Cheque, Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 30 Unit Unit Per Month
  • Delivery Time
  • 2-3 Days
  • Packaging Details
  • Wooden and Cardboard Box
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
