Infrared Thermometer

Infrared Thermometer
Infrared Thermometer
Send Inquiry
Product Code : 16
Brand Name : Advance
Product Description

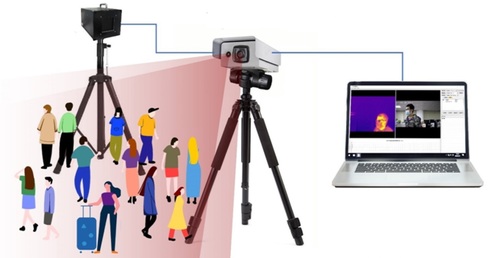

A Thermal Imaging based body temperature detection camera is integrated with a high resolution video for Real Time thermal imaging and temperature measurement along with Artifical Intelligence based core image analysis, etc.

Designed using Infrared non-contact body temperature detection to reduce the risk of cross infection

  • Using a highly advanced algorithm both high resolution video and and thermal imaging is displayed on a shared screen
  • A high accuracy thermal camera ensures a precise detection of body temperature detection with an accuracy of ± 0.3°C
  • Latest thermal design with built-in automatic temperature correction, eliminates temperature drift, thereby ensuring that the system remains stable and accurate
  • Latest thermal design with built-in automatic temperature correction, eliminates temperature drift, thereby ensuring that the system remains stable and accurate
  • Real-time dynamic thermal imaging,
  • Multi-target automatic measurement.
  • Long distance non-contact measurement, rapid and safe.
  • Intelligent temperature measurement using highly advanced algorithms
  • Automatic calibration
  • The system offers high-resolution infrared imaging of a large area,accurately locking on suspects with abnormal temperature.
  • The system offers the latest in Intelligent dual Imaging ie.visible imaging, thermal imaging,dual sensor algorithm,face detection,accurate location oft emperature measurments,and reducing false alarms
  • The intelligent alarm setting allows temperature threshold setting, automatic screening and early warning mechanism by highlighting any abnormal body temperature.

    Technical Specifications*

    Dual Camera measurement system
    Model AR-TC-100 AR-TC-30
    Visible parameter Chip Professional camera chip
    Sensor Cmos
    Lens 8mm
    Resolution 1080P
    Scan Mode Progressive Scan
    LUX 0.01Lux
    Wired wired 10Mbps/100Mbps RJ45
    Thermal imaging parameter Detector type Uncooled Thermal Detector
    Response range 7.5~14μm
    Pixel Size 17μm
    Fps 50HZ
    Temperature Range 0-50℃
    Temperature Accuracy ±0.3℃
    Emissivity black background temperature correction Automatic correction according to input emissivity and background temperature
    Atmospheric transmittance correction Atmospheric transmittance is  calculatedprevelant conditions and  correction factors applied  automatically
    Multi-face detection

    Simultaneously detect more than 80-100 people

    (can be configured for more people)
    Simultaneously detect more than 20-30 people

    Abnormal temperature alarm

    Support alarm of over temperature of 37.3 ℃ (user defined) automatically

    Working Temperature -10℃~+50℃
    Working Humidity 90%RH

    Note: Due to process of continuous improvements, specifications are subject to change without prior notice

    Accessories

    • Complete setup includes
    • Camera system
    • Tripod stand
    • Reference standard
    • Wires and cable
    • Computer and monitor
