Fever Detector Camera

Fever Detector Camera
Fever Detector Camera
Send Inquiry
Product Code : 18
Brand Name : Advance
Product Description

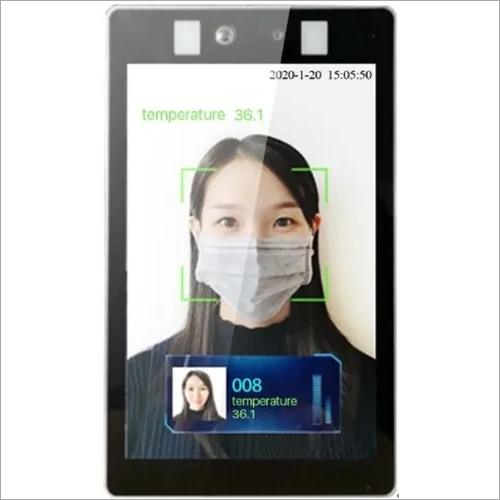

This compact and easy to use model of Fever Detection Camera finds extensive use in Shops, Offices, Laboratories, and other Access Controlled Areas etc.

The sophisticated camera with Thermal Imaging and Artificial Intelligence, allows for simultaneous display of both the image and the real time forehead temperature of the person standing in front of the camera.

Unlike other hand held devices, this system is
  • Accurate
  • Hands Free
  • Fully automatic
  • Accurately detects forehead temperature
  • "Mask detection" feature gives audible warning in case mask is not detected
  • Data Storage and Data transfer function
  • Avoid missing to check any individual
This compact system is accurate, easy and user friendly, works independently 24 x 7, consumes very little power totally eliminates requirement of dedicated manpower to check individuals

The 7-inch temperature measurement panel is a perfect combination of traditional applications based on face recognition and infrared temperature detection. Mainly designed for low volume movements viz. Laboratories, Individual Departments Hotel, access gate, office building,- school, shopping mall, communities, public services

  • 1. Novel design of built-in non-contact high-precision thermal imaging module and live detection
  • 2. Temperature detection range 35℃~42℃,
  • 3. Temperature Accuracy: ±0.3℃
  • 4. Powerful software allows overlay of human body temperature and picture
  • 5. Supports mask detection
  • 6. Built-in deep learning face recognition algorithm ensuers stable and reliable data
  • 7. Support 50,000 face database
  • 8. Fast identification speed of around 200ms
  • 9. 7” HD LCD display
  • 10. Alarm output on detection of abnormal temperature
  • 11. User configure multiple usage modes for face recognition, temperature detection, and mask recognition
  • 12. Light weight, ultra-thin metallic housing.
  • 13. Records identification information and temperature information, save traceability
  • 14. Excellent environmental adaptability, adapts to low light and strong backlight, support automatic face exposure
  • 15. Support 2D, 3D digital noise reduction
  • 16. Low power consumption
  • 17. Support various software and hardware customization
  • Technical Specifications*

    Model
    AR-TCF
    Display
    7" HD LCD
    Thermal Sensor Thermal imaging infrared temperature sensor
    Temperature measurement

    Range:35~42℃,Precision: ±0.3℃

    Detection distance 0.4m~0.7m
    Visible parameters Visible parameters Program mode (customizable shutter interval), shutter mode(1/5 - 1/20,000s)support for slow shutter
    White balance Auto, indoor, outdoor, sodium lamp mode, manual
    Digital noise reduction Support DNR,3DNR
    Day and night mode Fixed color
    AI Number of face bases 50,000
    Recognition speed ≤300ms
    Live detection supports
    Mask detection supports
    Body temperature alarm supports

    Interface

    power DC12V
    network 1ch10/100BaseT Ethernet RJ45 interface
    Switch 1ch relay output
    SD card Up to 8G
    MIC Built-in
    Audio Built-in 2ch audio output

    Physical Characteristics

    Working Temperature 10°C ~40°C
    Working Humidity 15%-55% RH
    Power Consumption 5W
    size 215x125x20mm
    weight <1kg

    Note: Due to process of continuous improvements, specifications are subject to change without prior notice

    Accessories

    • Main Unit
    • Mounting Bracket
    • Power Adapter
